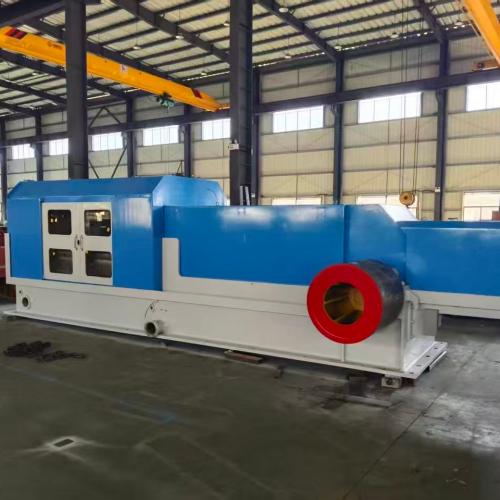

LG75 Cold Pilger Mill

LG75 cold rolling tube machine, with heavy-duty large rolling force, high-precision finished tubes, no scratches on the inner and outer walls of the tubes, high production capacity and high efficiency.
EMAIL INQUIRY

LG75 冷轧管机LG75 Cold Pilger Mill

机型Machine Model		LG75-HLSZ中速连轧 Medium Speed Continuous rolling	LG75-HSZ中速停机自动 Fully automatic,non-continuous rolling	单位 U O M
名称Description		参数Parameters
管坯Input tube	外径0.D	φ65-φ120		mm
	壁厚W.T	3～24		mm
	长度Length	2～7		m
	弯曲度 Straighteness	≤1(全长total ≤5)		mm/m
成品管Output tube	外径0.D	①38-φ95		mm
	壁厚W.T	1.5-20		mm
	长度Length	6～15		m
	成品外径公差 O.D tolerance	≤±0.05		mm
	成品壁厚公差 W.T tolerance	≤±0.02		mm
轧制材质Rolling Material		碳钢、合金钢、不锈钢Carbon steel,Alloy steel,Stainless steel
最大轧制力Max Rolling Force		4000		KN
延伸系数Elongation		根据材质as per the material
机架速度Stand Speed		20-110(按照120次设计) 20-110(design as per 120)		次/分钟 stroke/min
管坯送进量Feeding Length		0.5-10无极可调(steplessadjustable)		mm/次 (stroke)
管坯回转角度Rotary Angle		≤70无极可调(stepless adjustable)		度°degree
轧辊直径Die Dia		φ410		mm
回转送进方式Feeding/Rotary Way		双送双回、单送单回Double feeding/rotary,single feeding/rotary,adjustable
回转送进结构形式Feeding/Rotary Form		交流伺服电机或机械AC servo motor or Mechanical
机架上料方式Loading Way		端部上料Loading from end
机架结构Stand Structure		开式或闭式机架open or closed type stand
机架行程长度Stand Stroke length		965		mm
主电机功率Main Motor Power		200		KW
